Lloyd C.V

The Lloyd C.V was a reconnaissance aircraft produced in Austria-Hungary during the First World War.[1] It was a departure from Lloyd's previous reconnaissance types, which had all been based on a pre-war design. The C.V was a more compact and streamlined aircraft with an unusual wing structure.

Lloyd C.V
Lloyd C.V
Role Reconnaissance aircraft
National origin Austria-Hungary
Manufacturer Lloyd
First flight 1917
Primary user KuKLFT
Number built 144

Design and development

The design was largely conventional overall, except for the interplane struts. These were arranged in two sets, front and rear, with the rear sets consisting of two struts per wing, and the forward sets of only one strut per wing. When viewed from the front of the aircraft, rather than standing vertically, the rear struts formed a V-shape, converging to the point where they met the lower wings. From bottom wing to top, the single forward struts sloped inwards towards the centreline, matching the angle of the inboard rear struts. The fin was triangular and similar to the unit on earlier Lloyd designs, but featured an extension at the top of the rudder that reached over the top of the fixed part of the fin. With its curved leading edge and scalloped trailing edge, this rudder resembled the tail of a rooster, and gained the aircraft the nickname Kikeriki (German: "Cock-a-doodle-doo").

The wings departed from the usual structure of one or more spars surrounded by airfoil-shaped ribs and were built instead from ribs surrounded by longerons that stretched span-wise along the wings. This was all then covered in plywood sheeting. While this made for a strong, light structure, it also meant that repairs to damaged wings were difficult, and proved impossible to carry out in the field - damaged aircraft instead being sent back to depots for exchange. Another problem was identified in that moisture trapped inside the wings could have no way to escape easily and would cause the plywood skin to buckle or even delaminate.

Lloyd built 96 C.Vs in 1917, powered by Austro-Daimler engines, while WKF built another 48 with Benz engines. The type saw only brief front-line service before being relegated to secondary duties. A number of continued in service after the war with the military forces of Poland, Hungary, and the Ukraine. In Poland, six aircraft were operated until 1924, nicknamed Fornir ("Veneer").

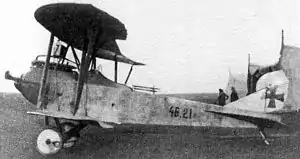

Damaged Lloyd C.V

Variants
  • C.Vs built by Lloyd with Austro-Daimler engine (96 built)
  • C.Vs built by WKF with Benz engine (48 built)

Operators
 Austria-Hungary
 Poland
Ukrainian People's Republic
 Hungary

Specifications

General characteristics

  • Crew: Two, pilot and observer
  • Length: 6.85 m (22 ft 6 in)
  • Wingspan: 11.00 m (36 ft 1 in)
  • Height: 2.86 m (9 ft 5 in)
  • Wing area: 33.0 m2 (355 sq ft)
  • Empty weight: 820 kg (1,900 lb)
  • Gross weight: 1,200 kg (2,640 lb)
  • Powerplant: 1 × Hiero 185 hp 6-cyl water-cooled inline piston engine , 138 kW (185 hp)

Performance

  • Maximum speed: 178 km/h (111 mph, 96 kn)
  • Range: 250 km (160 mi, 140 nmi)
  • Service ceiling: 5,000 m (16,400 ft)
  • Rate of climb: 3.9 m/s (770 ft/min)

Armament

  • 1 × trainable 8 mm Schwarzlose machine gun for observer
  • 1 × fixed, forward-firing 8 mm Schwarzlose machine gun in overwing Type II VK gunpod
  • 90 kg (200 lb) of bombs

Notes
  1. Taylor 1989, 581

References
  • Grosz, Peter M. (2002). Austro-Hungarian Army Aircraft of World War One. Colorado: Flying Machine Press.
  • Taylor, Michael J. H. (1989). Jane's Encyclopedia of Aviation. London: Studio Editions.
