Thymol blue

Thymol blue (thymolsulfonephthalein) is a brownish-green or reddish-brown crystalline powder that is used as a pH indicator. It is insoluble in water but soluble in alcohol and dilute alkali solutions.

Thymol blue (pH indicator)
below pH 8.0 above pH 9.6
8.0 ⇌ 9.6
Thymol blue (pH indicator)
below pH 1.2 above pH 2.8
1.2 ⇌ 2.8
Thymol blue
Names
IUPAC name
4-[9-(4-hydroxy-2-methyl-5-propan- 2-yl-phenyl)-7,7-dioxo-8-oxa- 7λ6-thiabicyclo[4.3.0]nona-1,3,5-trien-9-yl]- 5-methyl-2-propan-2-yl-phenol
Other names
α-hydroxy-α,α-bis(5-hydroxycarvacryl)- o-toluenesulfonic acid γ-sultone; thymolsulfonephthalein
Identifiers
3D model (JSmol)
ChemSpider
ECHA InfoCard 100.000.886
UNII
Properties
C27H30O5S
Molar mass 466.59 g·mol−1
Appearance Brownish-green crystal powder
Melting point 221–224 °C (430–435 °F; 494–497 K)
decomposes[1]
Insoluble
UV-vis (λmax) 594 nm (1st)
376 nm (2nd)[1]
Hazards
Main hazards Harmful
Xn N
NFPA 704 (fire diamond)
Flammability code 1: Must be pre-heated before ignition can occur. Flash point over 93 °C (200 °F). E.g. canola oilHealth code 1: Exposure would cause irritation but only minor residual injury. E.g. turpentineReactivity (yellow): no hazard codeSpecial hazards (white): no code
1
1
Except where otherwise noted, data are given for materials in their standard state (at 25 °C [77 °F], 100 kPa).
N verify (what is YN ?)
Infobox references

It transitions from red to yellow at pH 1.2–2.8 and from yellow to blue at pH 8.0–9.6. It is usually a component of Universal indicator.

At wavelength (378 - 382) nm, extinction coefficient > 8000 and at wavelength (298 - 302) nm , the extinction coefficient > 12000.[2]

Structures

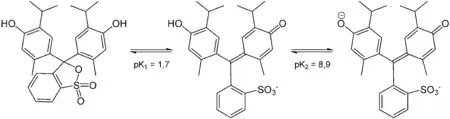

Thymol blue has different structures at different pH.

thymol blue.
Color of thymol blue solution at different acid-base conditions: left: acidic, middle: neutral, right: alkaline

Safety

It may cause irritation. Its toxicological properties have not been fully investigated. Harmful if swallowed, Acute Toxicity. Only Hazardous when percent values are above 10%.[3]
